Codemasters EA F1 25 Plugins

[zappadoc]

Codemasters EA F1 25 Plugin Engine 64Bit for MotionMax and Ledsmaster
by Zappadoc



Simulation/Game:
Name: EA F1 25 game
website: https://www.ea.com/games/f1/f1-25

Plugin Installation/Update:

- Check For Update to get latest plugins and software



- DO NOT FORGET TO ACTIVATE the plugins using the Plugins Manager



EA F1 25 UDP Setup Installation to send telemetry data:

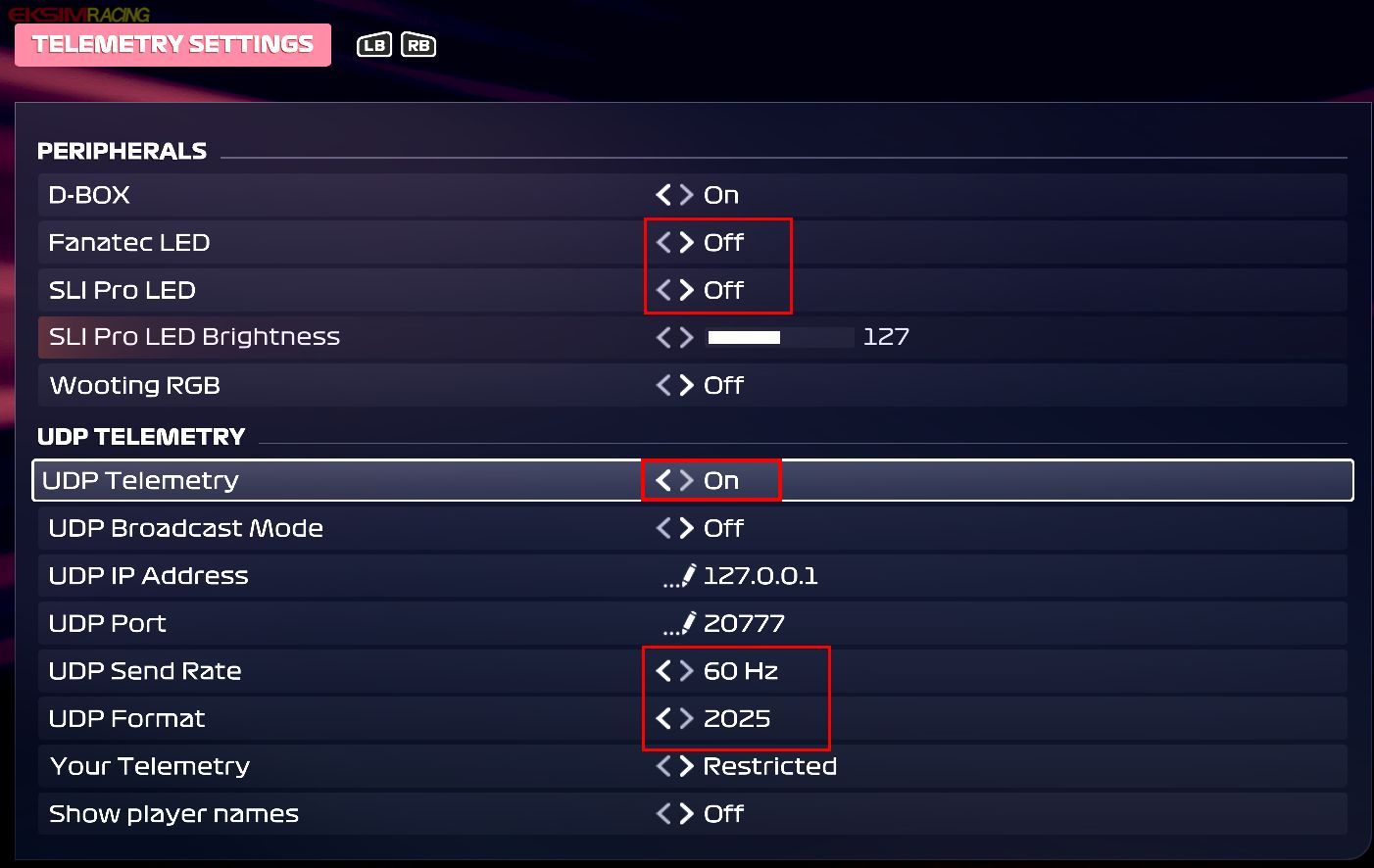

To configure F1 25, simply launch the game and in UDP Telemetery settings

- set Fanatec LED OFF
- set SLI-PRO LED OFF
- set UDP Telemetry to ON
- the rate to 60Hz
- do not activate Broadcast
- if the IP is not set then put 127.0.0.1 which is your local PC IP (localhost)
- Format: 2025



As usual you can use the F1 25 Console Bridge app (the app is inside the software directory) to play with XBOX/PSX version

(First Release 2025-05)

Optional: Select Advanced Options Tab to Overwrite Auto-Setup configuration



[zappadoc]

Codemasters / EA F1 25 Plugins are available for Ledsmaster (USB Racing Display, Dash, Stream Deck, Vocore screens, ...) and MotionMax (Motion platform simulator 2DOF To 6DOF). Select Check For Update as usual to get the latest software and activate the plugins using the plugins manager.
Enjoy!
z

[zappadoc]

Getting Telemetry On Your Game Device and Dash Display With Your Console (PS5/XB)

You need:
- a PS/XB console with F1 25 installed and this telemetry settings below:
IMPORTANT: change the UDP IP Address to the IP of your PC running Ledsmaster or MotionMax


- the F1 25 Console Bridge app (the app is inside the software directory)
- open Ledsmaster and/or MotionMax and ACTIVATE the F1_25ConsoleBridge plugin with the Plugins Manager

- now launch the game on the console,
- launch Ledsmaster or MotionMax
- launche the F1 25 Console Bridge App

That's It!
