EA SPORTS WRC 2023 Plugins

[zappadoc]

EA SPORTS WRC 2023 Plugins Engine 64Bit
For SLIMax Manager Pro and MotionMax Manager 2DOF to 6DOF
by Zappadoc





Simulation/Game:
Name: EA SPORTS WRC 23 game
website: https://www.ea.com/games/ea-sports-wrc/wrc

Plugin Installation/Update:

- Check For Update to get latest plugins and software

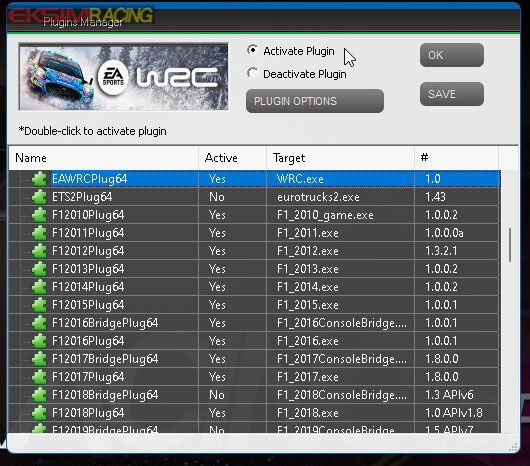

- DO NOT FORGET TO ACTIVATE the plugins using the Plugins Manager
- the plugin is aready configured with default UDP port, click Plugin Options button if you need to change the port



Configure EA WRC UDP settings to send telemetry data:
- edit config.json in ../My Games/WRC/telemetry/ directory to enable WRC packet

IMPORTANT: even if you disable "bDisplayGears" in config.json the Fanatec display and LED seem to continue to be managed by WRC, another bug in the game which prevent to use third party apps to manage your Fanatec Display and LED...
They need to fix it in meantime you can run SLIMaxMgrProNoFanatec64.exe. This app bypass Fanatec management completely and can be found in SLIMax Manager Pro app directory.
Also, the current WRC telemetry 1.3 do NOT provide the final time so this is why the time displayed is wrong during the pause after finished your stage... again another issue with the WRC Telemetry...

config.json settings:


(First Release 2023-10-27)

[zappadoc]

The plugins EA WRC Ledsmaster and MotionMax Manager have been tested successfully with the latest patch, enjoy your sim racing displays and motion simulator with this new game. I remind you that the current data provided are SUPER POOR!!!!!! so do not expect good motion data and good dash data like fuel, tires temp, etc. so no improvement in telemetry compared to DiRT Rally 2.0�
Cheers,
z

[zappadoc]

if you have an android tablet running VDASH-EMU (our Virtual Racing Dash Emulator), we suggest to install the DiRT Rally 2.0 Template from Makefred available for download here:

https://www.eksimracing.org/review-post/makefred-template-2-full-screen-for-dirt-rally-2-0/

[zappadoc]

EA SPORTS WRC Plugins for MotionMax Manager 2DOF+TL and 6DOF have been updated.

As usual select "Check For Update" to get the latest version.
Cheers,
z

IMPORTANT: if you have some bad or weird behavior with your simulator during the stage, THIS IS NORMAL!!! The WRC telemetry currently available (1.3) is bugged, to be short all required data are WORLD (map) based and not LOCAL (Vehicle) based... Sorry for this inconvenience, we hope the WRC Codemasters team will update their telemetry as soon as possible. see next post


[zappadoc]

Hi,

New EA SPORTS WRC plugin for MotionMax is now available. As usual Check For Update to get the latest software. This is a recommended update.

Changelog 2023-11-15:

    fixed acceleration and velocity.
    The WRC documentation 1.3 states velocity and acceleration are in local* space which is wrong, it�s in world* space.

*In 3D local = relative to vehicle; World = relative to the map.



Load the first stage of Estonia for example, jump in your FREX 6DOF or your 2DOF+Traction Loss powered with MotionMax Manager, load the default EA WRC game profile and enjoy!



More Info on FREX 6DOF Simulator at FREX online store

Cheers,
z
