The ZTLS is under Creative Commons Attribution-Noncommercial-ShareAlike 4.0 International (CC BY-NC-SA 4.0) license and requires my written consent to be marketed or used in any business/commercial context.
In short, it's for
*PERSONAL USE ONLY* and forbidden for any business/commercial. Read the license HERE.
PARTS LIST:4 x countersunk screw with hexagon socket DIN 7991 size: M6x20
4 x Screw DIN 912 size: M6x30
4 x Screw DIN 912 size: M6x12
1 x Screw DIN 912 size: M8x70
2 x Washer DIN 9021 for M8 diameter 20mm
4 x Washer for M6 diameter 12mm
2 x Rubber Grommet M8
5 x Nut DIN 985 NM8 Mutter/Nut
4 x Nut DIN 985 NM6 Mutter/Nut
1 aluminum swivel plate 6 inch (thickness 10mm)
(remove rubbers , all 8 holes must be enlarged with a 6.5 mm drill,
be careful not to put dust in the ball bearing)

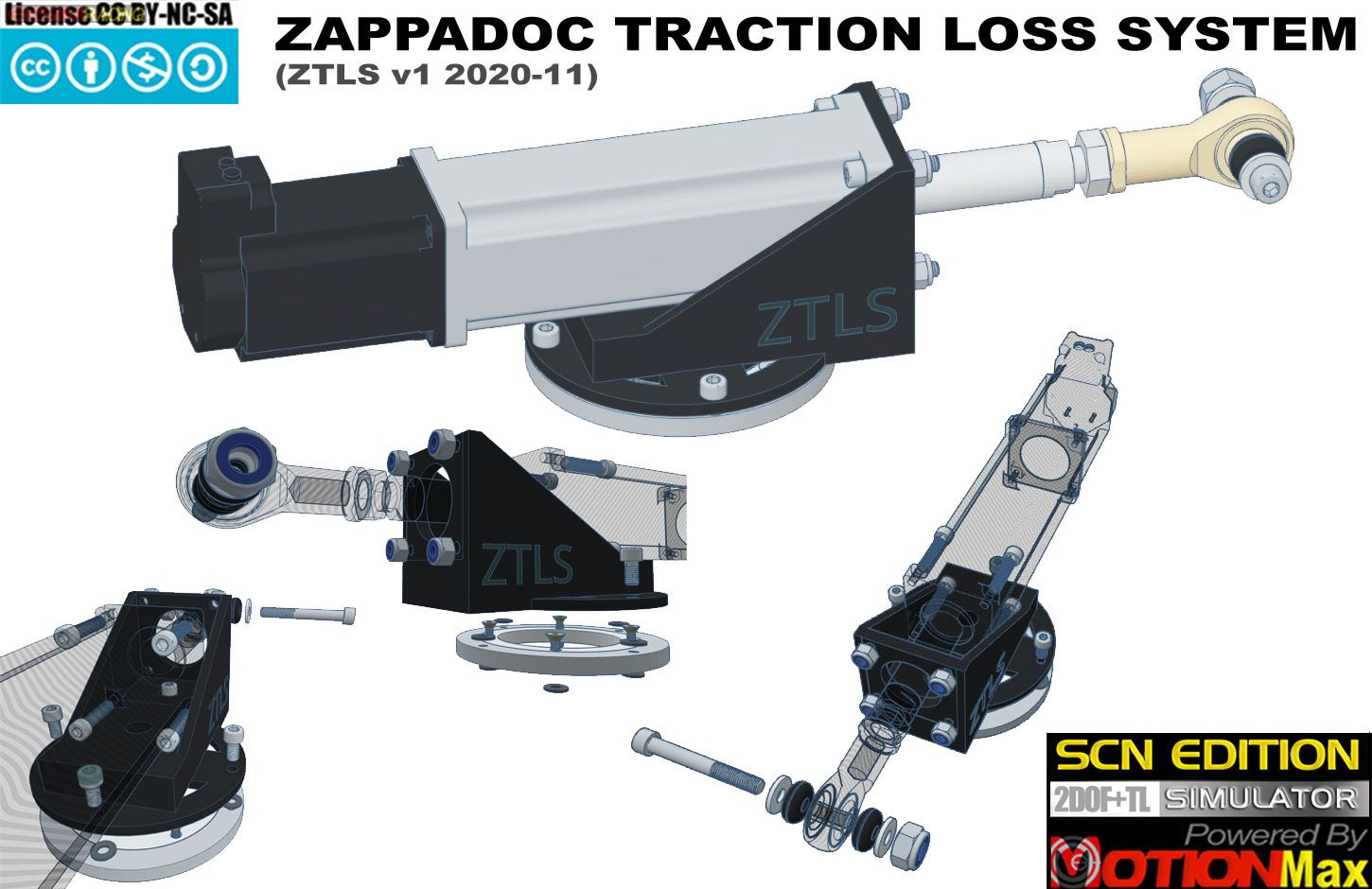

SCN6 ZTLS Support (STL format) for printer 3D
Print in PETG or ABS
Estimated time: 20h
Filament: PETG 1.75mm (Color: Black or Gray Brand: Sunlu or Real or Eryone)
Nozzle: 0.2
Resolution: 0.1800 (layer height)
Infill: 50%
Top/Bottom Solid Layer: minimum 3 (recommended 3 top and 6 bottom)
Rafts: No
Supports: needed, Pillar res. = 2.00, Max angle = 65 deg
PETG Settings:
Extruder: 240° first layer; 235° during 3 layers; then 230° until finish
Bed: 80°
DOWNLOAD THE 3D STL FILE:License under Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International (CC BY-NC-SA 4.0)
STL files available on demand (contact us)
Mounting:
Cheers,
z
