PARTS LIST

The 2DOF+ZTLS is based on 2DOF+TL FREX Motion Kit, available here:


https://frex.com/store/product/2doftl-motion-kit/

The 2DOF+ZTLS is obviously optimized for MotionMax Manager 2DOF SCN Edition available here:



https://frex.com/store/product/motion-max-2doftl-software/

REMINDER: A software license of MotionMax Manager is included with your "Premium Access" subscription, check your account ( https://www.eksimracing.org/forum/index.php?action=profile ), read the faq for more info:
https://www.eksimracing.org/forum/index.php?topic=5135.0

[zappadoc]

Number    Item
-------------------------------------------------------------------
1 x    Profile 80x160 L I-type slot 8 Length:    1200 mm

1 x    Profile 40x80L I-type slot 8 Length:    600 mm

1 x    Profile 40x80L I-type slot 8    Length:    500 mm

1 x    Profile 40x80L I-Type slot 8    Length:    550 mm

1 x    Profile 40x80L I-type slot 8    Length:    220 mm

2 x    Profile 40x80L I-type slot 8    Length:    510 mm

1 x    Profile 40x80L I-type slot 8    Length:    250 mm

1 x    Profile 40x40L I-Type slot 8    Length:    750 mm

2 x    Profile 40x40L I-Type slot 8    Length:    300 mm

1 x    Profile 40x40L I-Type slot 8    Length:    400 mm

1 x    Profile 40x40L I-Type slot 8    Length:    550 mm

2 x    Profile 40x40L I-Type slot 8    Length:    500 mm

2 x    Profile 40x40L I-Type slot 8    Length:    200 mm

3 x    Profile 40x40L I-Type slot 8    Length:    100 mm

2 x    Profile 40x40L I-Type slot 8    Length:    350 mm

1 x    Profile 40x160L I-Type slot 8    Length:    670 mm

2 x    Node plate I-type and B-type groove 8*

12 x    Bracket 40x80 slot 8 Type:    only the bracket

28 x    Bracket 40 I-Type slot 8 Type:    only the bracket

10 x    Angle Clamp 40 with Locking Lever I-Type slot 8

100 x    T-nut guided I-type slot 8 [M8]

50 x    T-nut guided I-type slot 8 [M6]

100 x    Screw DIN 7380 size:    M8x16

50 x    Screw DIN 7380 size:    M8x18

1 x    T-connector plate 200x160x5, 16 holes Laser cut Type: Black powder-coated

4 x Rubber Grommet M8

2 x Industrial KSM25-FL Ball transfer unit M12 thread (see the next post for more info)

------------------------------------------------------------------------

Top Mounting of SCN6

1 x    Profile 45x45L B-Type slot 10    Length:    320 mm

8 x    Sliding block with spring B-type slot 10 [M8]

------------------------------------------------------------------------

ZTLS (Zappadoc Traction Control System)

check this TOPIC for more info on ZTLS


10 x    countersunk screw with hexagon socket according to DIN 7991 size:    M6x20

10 x    Screw DIN 912 size:    M6x30

10 x    Screw DIN 912 size:    M6x12

1 x     Screw DIN 912 M8x70

10 x    Washer DIN 9021 for M8 diameter 24mm

10 x    Washer DIN 125 for M6 diameter 12mm

5 x     Nut DIN 985 M8

2 x     Rubber Grommet M8

1 x     aluminum swivel plate 6 inch (thickness 10mm)

--------------------------------------------------------------

COVER CAPS

20 x   Cover Caps 40x40 I-Type slot 8

1 x    Cover Caps 40x160 I-Type slot 8
1 x    Cover Caps 80x160 I-Type slot 8

8 x    Cover Caps 40x80 I-Type slot 8
2 x    Cover Cap 45x45 B-Type Slot 10

10 x    Bracket cover Cap 40x80 I-Type Slot 8
20 x   Bracket cover Cap 40x40 I-Type Slot 8

* the 2 x    Node plate I-type and B-type groove 8  are optional but recommended to reinforce the pedals set holder

[zappadoc]

2 x Industrial KSM25-FL Ball transfer unit M12 thread


fast, more efficient, support more load, tested and approved by us

we use the nylon ball (120Kg) less noisy



https://www.amazon.co.uk/Yibuy-Transfer-Bearing-Roller-Thread/dp/B07MC84GRZ

but the metal ball exists as well (130/150Kg)



https://www.aliexpress.com/item/32837281849.html

https://www.aliexpress.com/item/32809972364.html

[zappadoc]

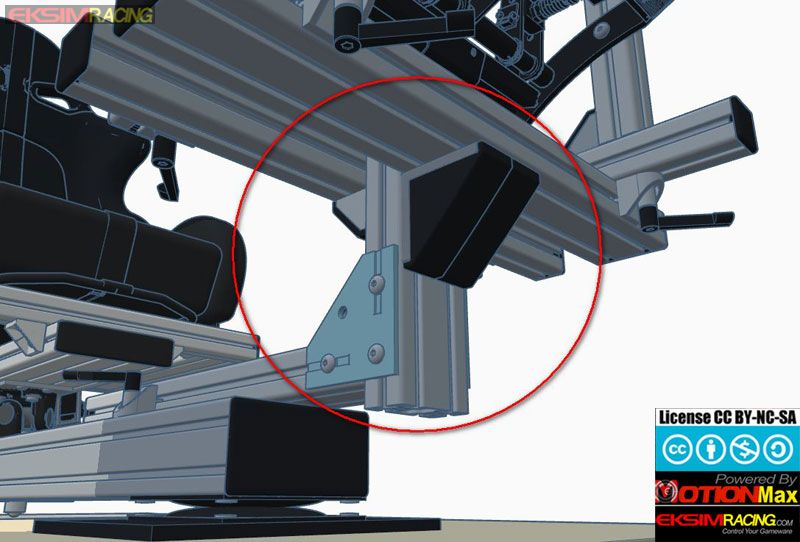

Reinforced seat support
