Plugin UI & Settings System

1. Overview

OpenSR separates runtime logic from user interface and configuration.

A plugin can optionally provide:

• a Settings module (settings.dll)
• a UI module (ui.dll)

These modules are:

• independent from the core plugin binary
• loaded on demand by the dashboard
• fully optional

A plugin remains valid and functional without them.

2. Plugin Type Identification

Each plugin defines its category using:

int GetType();

This returns:

• GAME_PLUGIN_TYPE → IN plugin
• OUT_PLUGIN_TYPE → OUT plugin

This determines:

• how the host manages lifecycle
• which buffers are exposed
• how the plugin participates in the data flow

3. UI & Settings Architecture

Key principle:

UI and Settings are not part of the runtime plugin lifecycle

They are:

• dashboard-driven
• user-triggered
• short-lived

4. Lifecycle (UI & Settings)

Both IPluginUI and IPluginSettings follow the same lifecycle:

When user opens the corresponding tab/page:

1. DLL is loaded
2. CreatePluginUI() / CreatePluginSettings()
3. Initialize(...)

When user leaves the page or closes UI:

4. Shutdown()
5. DestroyPluginUI() / DestroyPluginSettings()
6. DLL is unloaded

5. IPluginSettings Interface

Purpose:

Provide a configuration interface for the plugin.

Interface:

#define _PLUGIN_SETTINGS_CHANGED  0x8410

class IPluginSettings {
public:
    virtual ~IPluginSettings() = default;

    virtual BOOL Initialize(
        HWND hWindow,
        OpenSRContext* context,
        void* buffersOut,
        const wchar_t* pluginFolderPath
    ) = 0;

    virtual BOOL Shutdown() = 0;

    virtual BOOL WantsDialogMessages() const { return FALSE; }
};

Behavior:

• Initialize(...)
  • Receives a child window handle
  • Plugin renders its UI inside it
  • Has access to:
    • context
    • buffers
    • plugin folder
• Shutdown()
  • Called when UI is destroyed
  • Returns:
    • TRUE → settings changed
    • FALSE → no changes
• WantsDialogMessages()
  • Enables Win32 dialog message routing (IsDialogMessage)

To notify the plugin from Settings dll, simply PostMessage _PLUGIN_SETTINGS_CHANGED to parent window (m_hWnd member is set from Initialize() ):

BOOL ExampleSettings::Initialize(HWND hWindow, OpenSRContext* context, void* buffersOut, const wchar_t* pluginFolderPath) {
    m_hWnd = hWindow;
    m_pContext = context;
    m_pluginFolderPath = pluginFolderPath;
...

Usage:

 HWND hParent = GetParent(m_hWnd);
    if (hParent && IsWindow(hParent))
    {
        PostMessage(hParent, _PLUGIN_SETTINGS_CHANGED, 0, 0);
    }

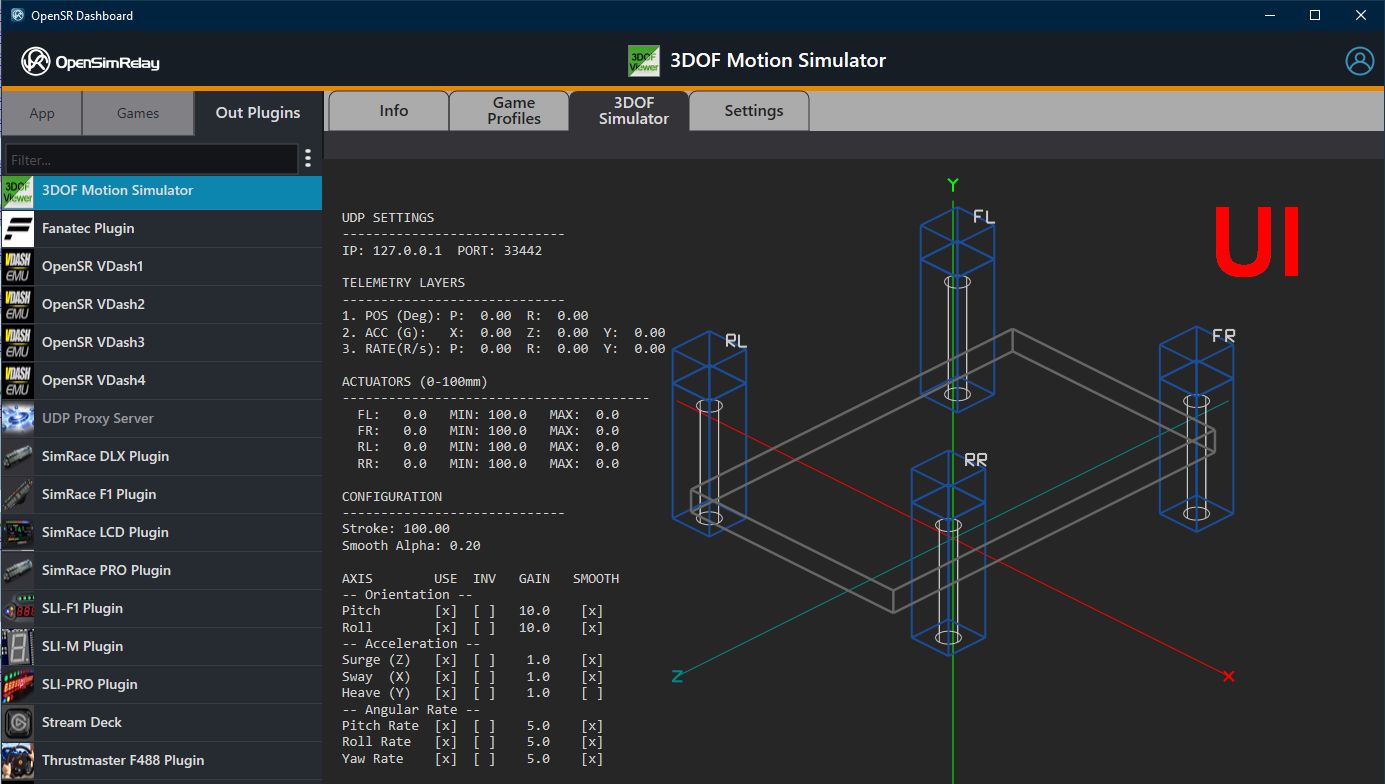

6. IPluginUI Interface

Purpose:

Provide a runtime visualization or control panel

Interface:

class IPluginUI {
public:
    virtual ~IPluginUI() = default;

    virtual BOOL Initialize(
        HWND hWindow,
        OpenSRContext* context,
        void* buffersOut,
        const wchar_t* pluginFolderPath,
        const uint64_t sharedBuffer = 0
    ) = 0;

    virtual BOOL Shutdown() = 0;

    virtual BOOL WantsDialogMessages() const { return FALSE; }
};

Key differences vs Settings:

• Can receive an additional sharedBuffer
• Intended for passing data from UI <> plugin

7. DLL Contracts

Each module must export:

Settings:

extern "C" {
    __declspec(dllexport) IPluginSettings* CreatePluginSettings();
    __declspec(dllexport) void DestroyPluginSettings(IPluginSettings*);
}

UI:

extern "C" {
    __declspec(dllexport) IPluginUI* CreatePluginUI();
    __declspec(dllexport) void DestroyPluginUI(IPluginUI*);
}

8. File Naming Conventions

Inside plugin folder:

• UI module: ui.dll
• Settings module: settings.dll

These names are mandatory conventions used by the host.

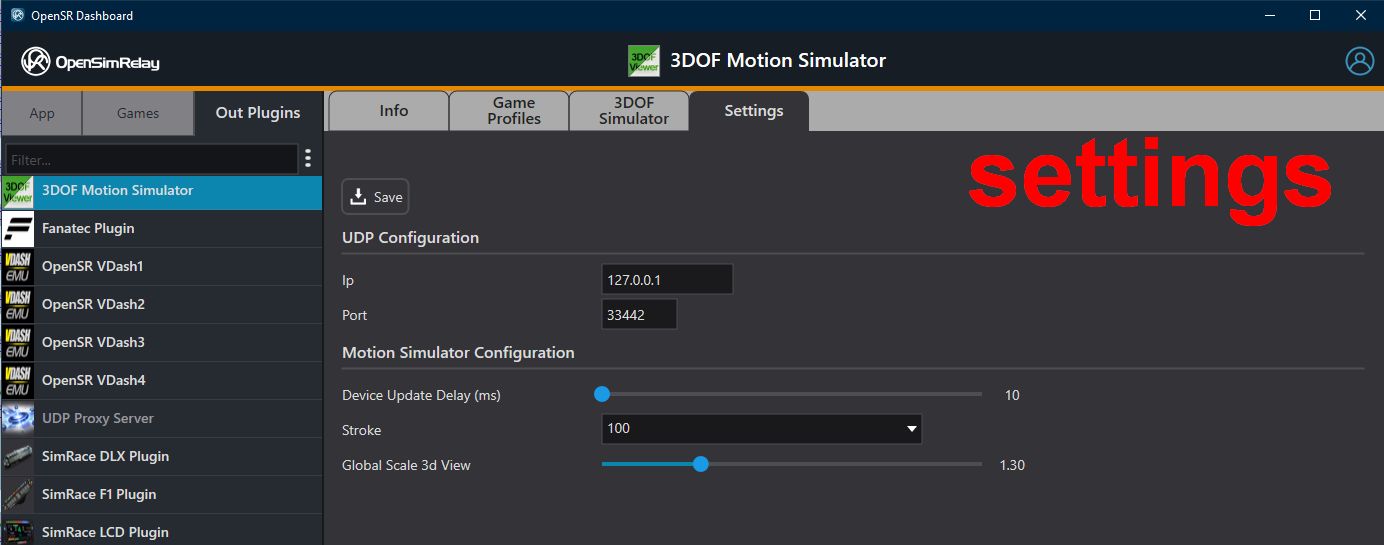

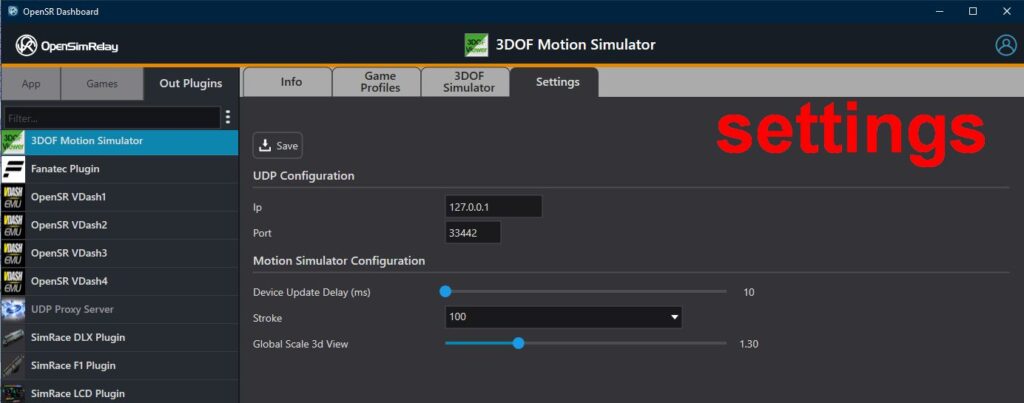

9. XML-Based Settings (Built-in Alternative)

If no settings.dll is provided and a :

• The dashboard automatically manages:settings.xml

Behavior:

• Generic UI is generated by the host
• Plugin is notified via callback when values change
• No custom UI code required

Developer choice:

• Simple plugin → use settings.xml
• Advanced plugin → implement settings.dll

10. Real-World Plugin Structure

OUT plugin example:

OutPlugins/
  3DOFViewSimulator/
    3DOFViewSimulatorPlugin.osro
    ui.dll
    settings.xml
    profile_template.xml

Mixed example:

OutPlugins/
  V2RController/
    V2RController.osro
    Settings.dll   // custom UI for firmware management

IN plugin example:

Plugins/
  Beam.NG.Drive/
    BeamNGDrivePlugin.osri
    settings.xml

11. Key Design Rules

• UI and Settings:
  • must not contain runtime logic
  • must not depend on plugin threads
• Must be:
  • fast to load/unload
  • safe to destroy at any time
• No persistent state should rely on UI lifetime

12. Mental Model

• ui.dll → visualization (user-driven)
• settings.dll → configuration (user-driven)
• settings.xml → fallback system (host-driven)
